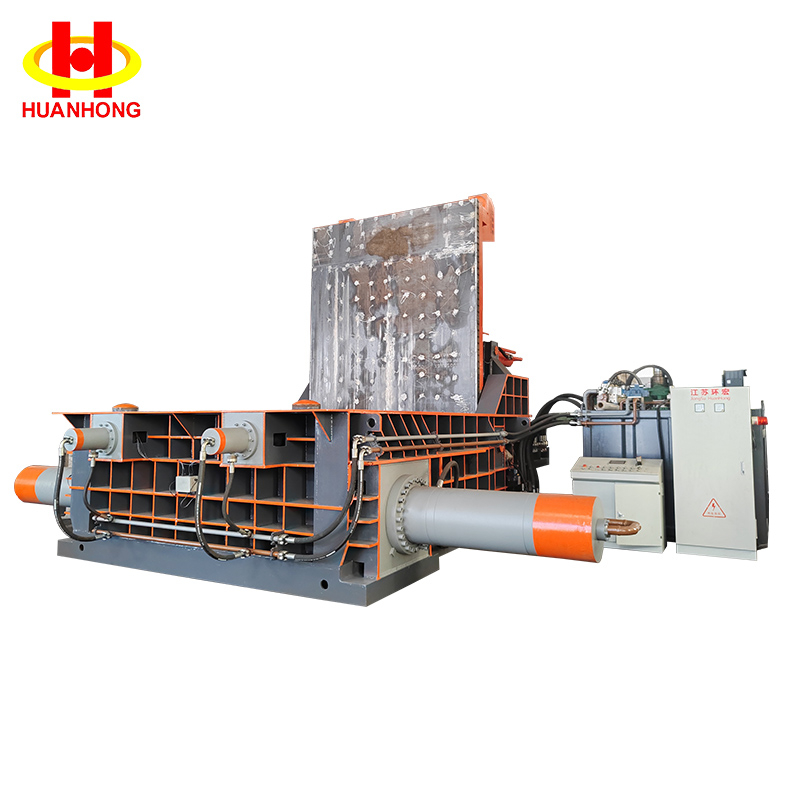

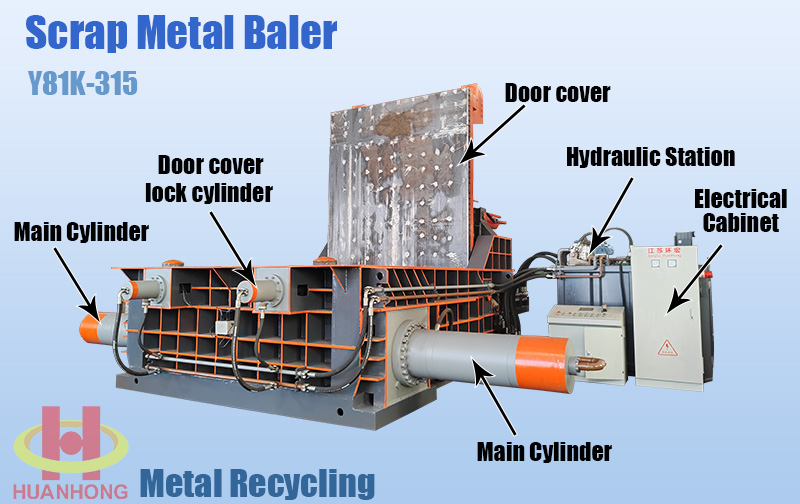

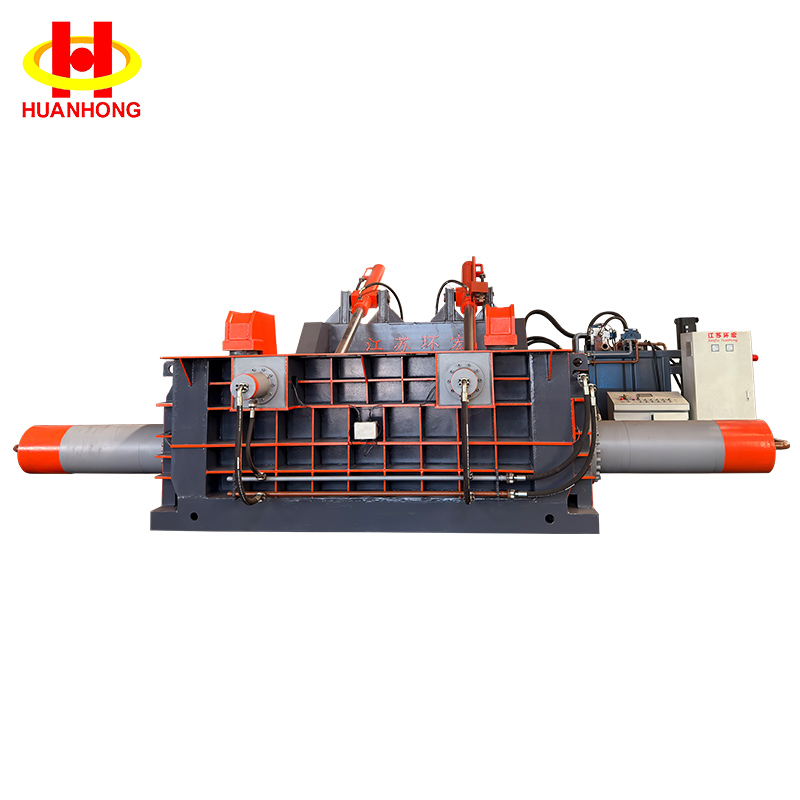

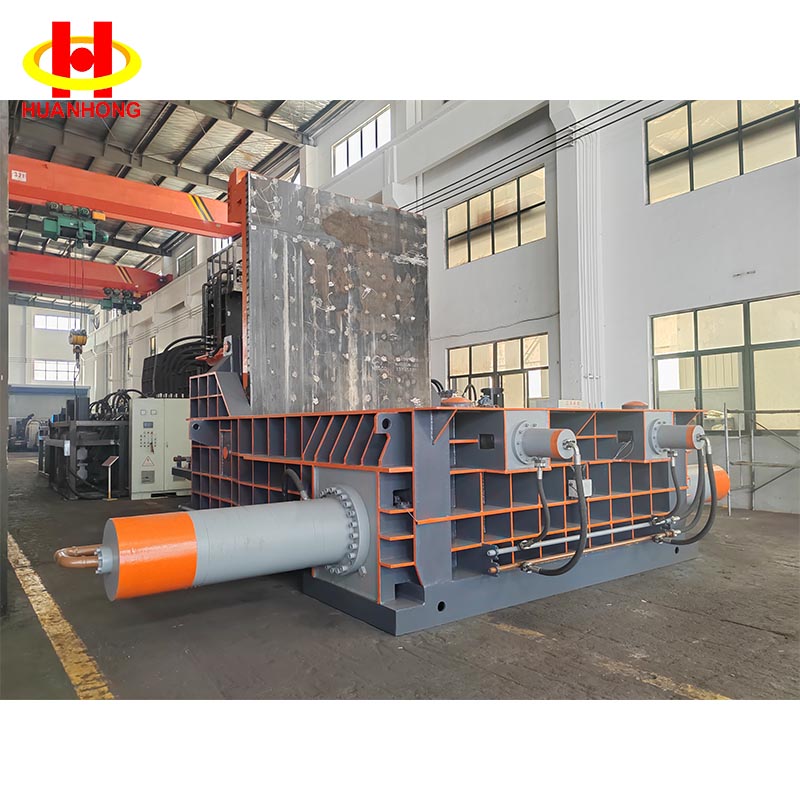

The Y81 series scrap metal baler is a specialized hydraulic machine designed to efficiently process various types of loose scrap metal by compressing it into shape at ambient temperature. This 315-ton model is engineered to handle a wide range of materials—from steel and aluminum chips to bulky copper scrap and stainless steel offcuts—compacting them into high-desity, structurally stable bales. Its 3,500 × 3,000 × 1,200 mm feed box accommodates large volumes of material, while the dual-motor hydraulic power unit (45 kW × 2) delivers the robust, reliable power required for commercial-scale recycling operations.
Technical specification of Y81K-315 metal baler | |
Model | Y81K-315 |
Nominal pressure | 3150 KN |
Press box size | 3500*3000*1200 mm |
Bale section size | 600*600 mm |
Power | 45 KW*2 |
The above parameters are for reference only. The balers can be customized.
1. Broad material adaptability: Capable of processing ferrous scrap, non-ferrous alloys, and mixed metal scrap without the need for pre-sorting or manual separation prior to compression.
2. Superior compaction density: A main cylinder force of 3,150 kN effectively eliminates internal voids, resulting in bales with a density far exceeding that of loose scrap or material processed via other mechanical compression methods.
3. Optimized material flow: The large-capacity compression chamber reduces the frequency of loader intervention, allowing operators to focus on upstream material collection and downstream logistics coordination.
4. Compact footprint, high productivity: Despite its industrial-grade processing capacity, the equipment features a space-efficient layout suitable for both professional recycling facilities and in-house corporate scrap management sites.
5. User-friendly operation: Intuitive push-button controls and automated programming minimize the learning curve, enabling new operators to consistently produce high-quality bales with minimal training.
6. Rugged durability and longevity: A heavy-duty welded frame and wear-resistant liners withstand abrasive contact with the metal, extending maintenance intervals and reducing total lifecycle maintenance costs.
1. Industrial Metal Scrap Consolidation: Manufacturing plants generating metal chips, stampings, and trim scrap can use the Y81K-315 to transform waste into profitable bales, thereby avoiding high disposal costs.
2. Non-ferrous Metal Recycling: Companies specializing in the recycling of aluminum profiles, copper wire, and brass fittings can utilize this equipment to produce clean, dense bales, securing better prices when selling to refineries.
3. Demolition and Construction Scrap Recycling: Contractors handling structural steel, rebar, and mixed metals from demolition projects can use this equipment to rapidly densify materials either on-site or at centralized collection points.
4. Ship Breaking and Heavy Industry: Capable of processing thick steel plates, castings, and industrial machinery components, this equipment handles heavy-duty materials that smaller baling systems cannot manage.
5. Export-oriented Scrap Processors: Produce bales that meet ISRI (Institute of Scrap Recycling Industries) standards, satisfying the strict requirements regarding size, density, and purity demanded by international scrap metal buyers.
1. Customized Bale Specifications: Specify precise bale dimensions, target weights, and cross-sectional shapes—whether rectangular for easy stacking, cylindrical for rolling discharge, or octagonal for specialized furnace charging.
2. Compression Chamber Configuration: Adjust the 3500×3000×1200 mm compression box dimensions to suit your loading equipment, material type, or available installation space.
3. Hydraulic Power Customization: Choose from various motor and pump combinations to optimize the balance between compaction force, cycle speed, and energy consumption based on your specific scrap composition.
4. Automated Material Handling: Integrate hopper feeders, conveyor feed systems, automatic strapping mechanisms, or discharge conveyors to minimize manual labor.
5. Global Compliance and Certification: Configure electrical systems, safety guards, and technical documentation to ensure compliance with CE, ISO, or local regulatory standards in your target markets.
