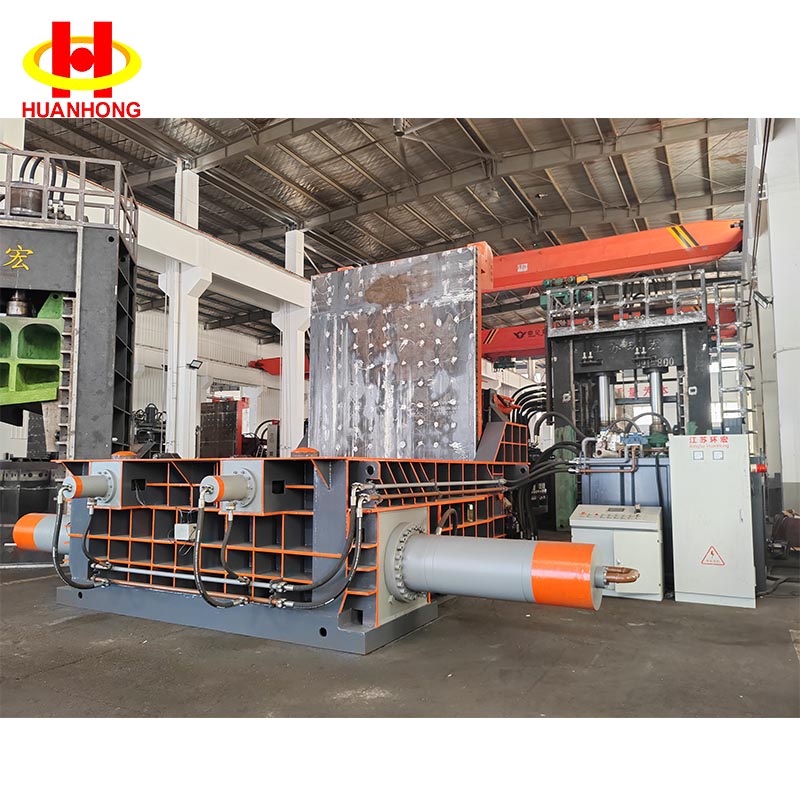

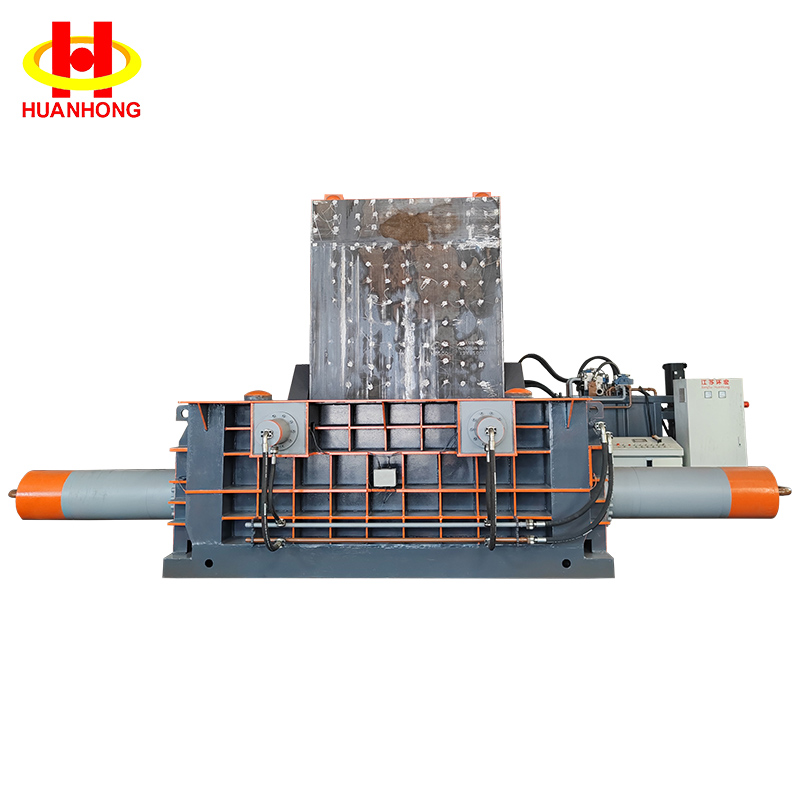

The Y81K-315 hydraulic scrap metal baler is an industrial-grade compaction solution designed for high-volume metal recycling facilities. With a rated pressure of 315 tons and a rated clamping force of 3150 kN, this baler compresses bulk scrap metal (including steel, aluminum, copper, and stainless steel) into dense, uniform rectangular bales with a cross-sectional dimension of 600 × 600 mm. The Y81K-315 features a robust 3500 × 3000 × 1200 mm material pressing bin, maximizing material intake per cycle while maintaining consistent bale density. Driven by two 45 kW hydraulic motors, the machine provides the power and speed required for continuous operation in harsh recycling environments.
Technical specification of Y81K-315 metal baler | |
Model | Y81K-315 |
Nominal pressure | 3150 KN |
Press box size | 3500*3000*1200 mm |
Bale section size | 600*600 mm |
Power | 45 KW*2 |
The above parameters are for reference only. The balers can be customized.
1. High-Pressure Hydraulic System: Dual 45 kW motors generate 3150 kN of compression force, ensuring maximum density in each bale and reducing material volume by up to 80%.
2. Large Compactor: Equipped with a 3500×3000×1200 mm compactor, this baler can accommodate large quantities of mixed waste, minimizing loading times and maximizing processing efficiency.
3. Precise Bale Output: Produces standardized 600×600 mm rectangular bales for efficient stacking, optimizing container loading and simplifying downstream processing in smelters and foundries.
4. Easy Installation: No anchor bolts required for installation.
1. Scrap Metal Recycling Sites: Ideal for handling mixed ferrous and non-ferrous metal scrap collected from demolition sites, auto dismantling plants, and industrial manufacturers.
2. Steel Mills and Foundries: Produce baled materials for direct smelting, ensuring uniform melting and improving energy efficiency in secondary steelmaking and aluminum remelting operations.
3. Automotive Recycling Facilities: Compress scrapped vehicle shells, engine blocks, and mixed metal parts into easily transportable baled materials for delivery to metal refineries.
4. Metalworking Scrap Management: Handle turning chips, scraps, and offcuts generated from CNC machining, stamping, and welding operations, freeing up valuable ground space.
5. Ports and Logistics Hubs: Produce high-density, stackable baled materials to maximize container utilization and reduce international shipping costs for scrap metal exporters.
We offer comprehensive OEM and ODM customization services for our Y81 series metal balers to meet your specific operational needs:
1. Baler Geometry Adjustment: In addition to the rectangular cross-section of 600×600 mm as designed for this baler, we can also design cylindrical, octagonal, and other shapes to meet your end-customer specifications or furnace charge requirements.
2. Chamber Size Adjustment: Adjust the length, width, and depth of the chamber to accommodate your commonly used raw material sizes, loader bucket sizes, or available space constraints.
3. Power and Output Optimization: Adjust motor specifications, pump configurations, and cycle times based on your material mixing to achieve a balance between maximum pressure and higher hourly output.
4. Feed and Discharge System Integration: Customize forward feeding, side feeding, or hopper feeding configurations, as well as automatic discharge and conveyor integration for a fully automated production line.
