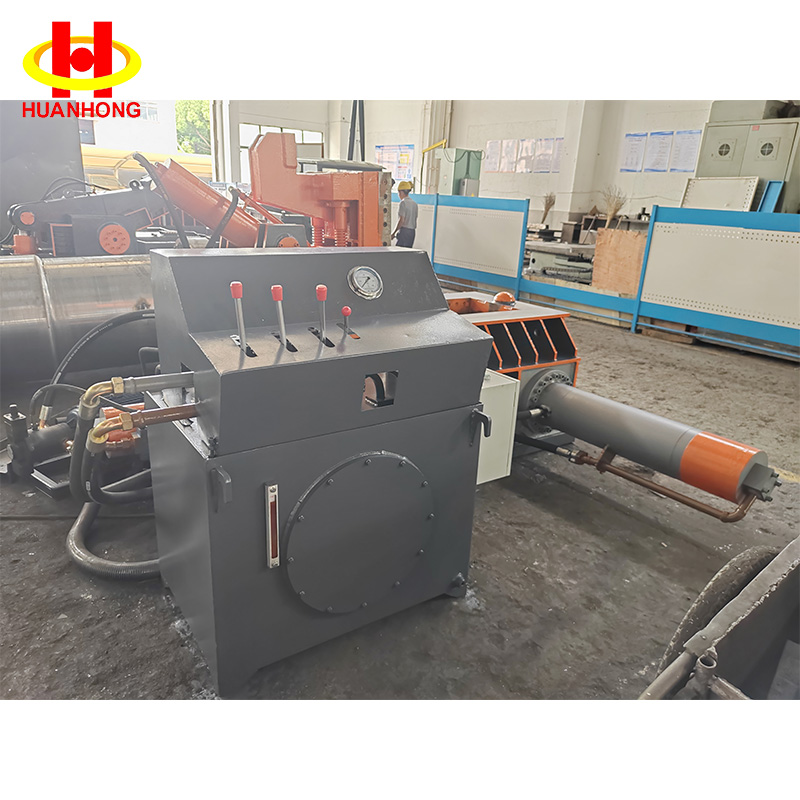

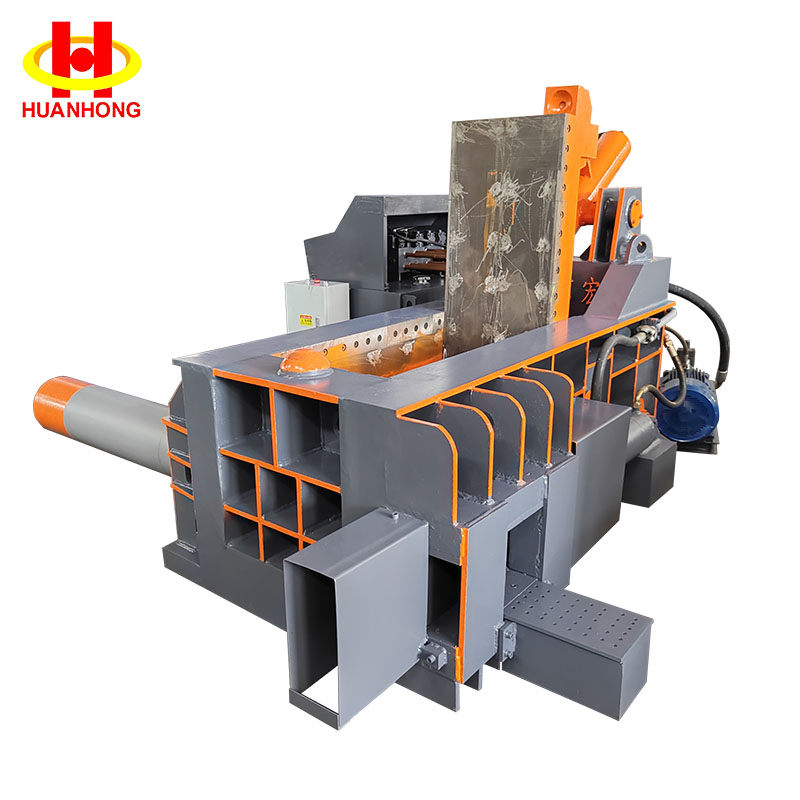

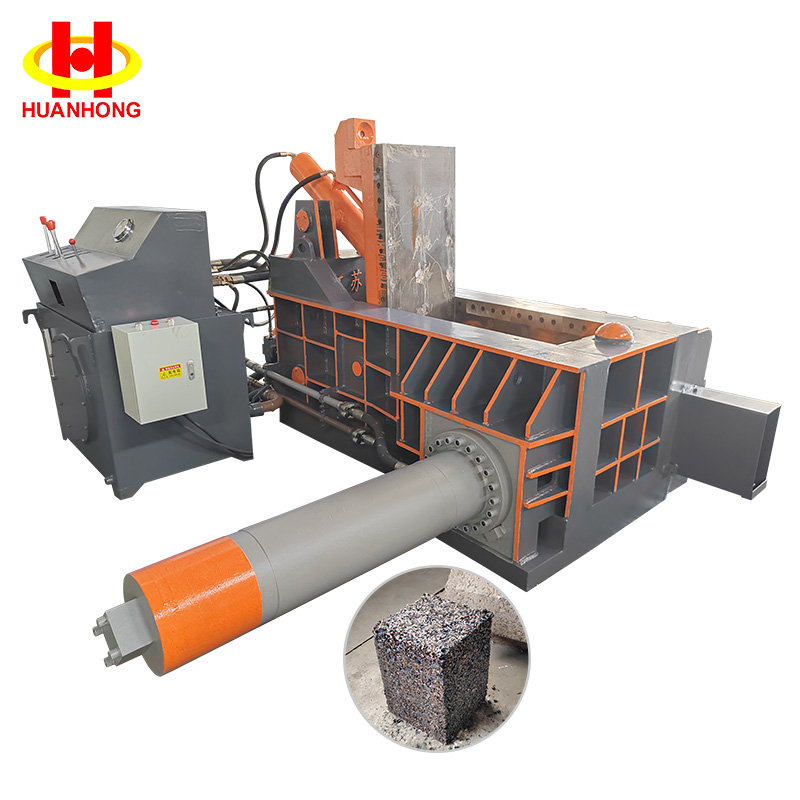

This 125-ton side-discharge hydraulic metal baler is designed for small footprints and compact bale sizes. Equipped with a custom-designed 1000×500×600 mm compactor box, it delivers exceptional compression force in a minimal space. This small hydraulic metal baler compresses loose metal scrap into uniform 200×200 mm rectangular bales, making it ideal for foundries, scrap metal logistics, and container shipping.
Technical specification of Y81T-125 metal baler | |
Model | Y81T-125 |
Nominal pressure(kn) | 1250 |
Bin size(L*W*H)(mm) | 1000*600*500 |
Bale size(W*H)(mm) | 200*200 |
Power(kw) | 15 |
Hydraulic system pressure(MPa) | 22 |
The above parameters are for reference only. The balers can be customized.
1. Customized compact hopper design: The 1000×500×600mm hopper is designed for compact waste processing, resulting in a small footprint.
2. Precise 200×200mm bag geometry: The uniform rectangular profile ensures stable stacking, smaller transport volume, and direct compatibility with induction furnace feeding systems and scrap metal conveyors.

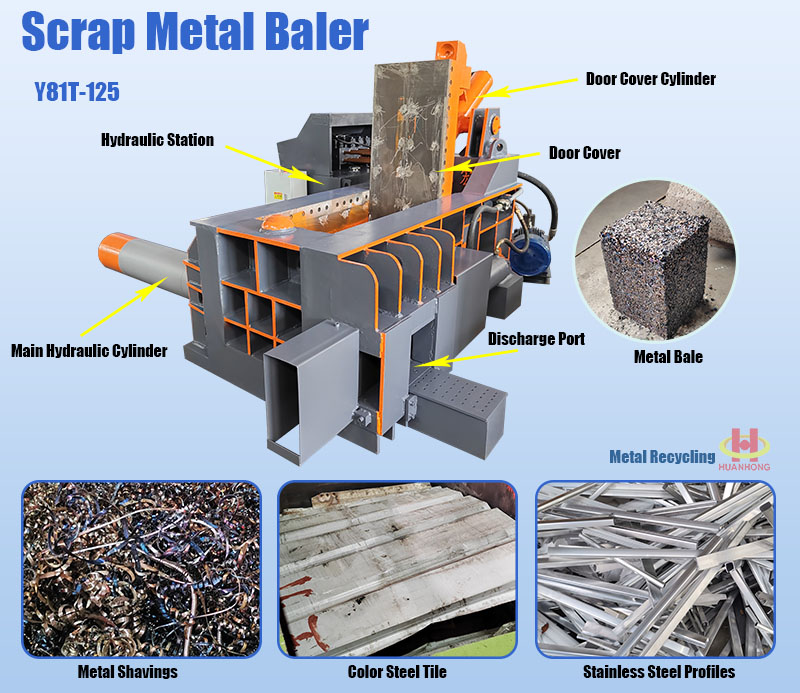

3. Side discharge system: Bags are pushed out laterally via a hydraulically driven side door, allowing for immediate reloading of the hopper while securing the previous bag.
1. Small to medium-sized scrap yards and recycling centers: Ideal for sites processing 5-15 tons of metal scrap per day. The compact compression chamber accommodates actual feed volumes, avoiding the problem of "overcapacity and underutilization."
2. Precision foundries and foundry workshops: The 200×200 mm compression ladle cross-section is optimized for induction furnaces and cupola furnace charging systems, ensuring stable melting rates and shortening charging time.
3. Automotive parts manufacturers: Ideal for compressing aluminum scrap, steel stamping scrap, and mixed alloy shavings generated from CNC machining and stamping operations. The small compression chamber meets the frequent, small-batch processing needs common in just-in-time production.
4. Non-ferrous metal processors: Copper, brass, and aluminum scrap processors can benefit from the high compression ratio, significantly reducing storage space and transportation costs to smelters.
5. Urban Metal Recycling Centers: Space-constrained urban recycling stations can utilize their minimum bin length of only 1000 mm to install high-performance baling equipment, which standard machines cannot accommodate.
1. Customizable Bin Size: This 125-ton hydraulic metal baler has a standard bin size of 1000×500×600 mm. We can adjust the length, width, or height parameters to match your specific scrap shapes—whether it's long aluminum profiles, bulky car radiators, or fine metal shavings.
2. Bale Size Calibration: Need bale sizes of 180×180 mm or 250×250 mm instead of 200×200 mm? We can reconfigure the die to produce cross-sections that meet the specifications of your downstream equipment or buyer.
3. Voltage and Regional Compliance: Suitable for 220V/380V/415V/440V, 50/60Hz configurations, and fully CE certified. UL/CSA certification is optional for the North American market.
4. Installation and Commissioning Support: We provide global remote technical guidance, on-site engineer deployment, and operator training programs.
Waste metal recycling equipment display
