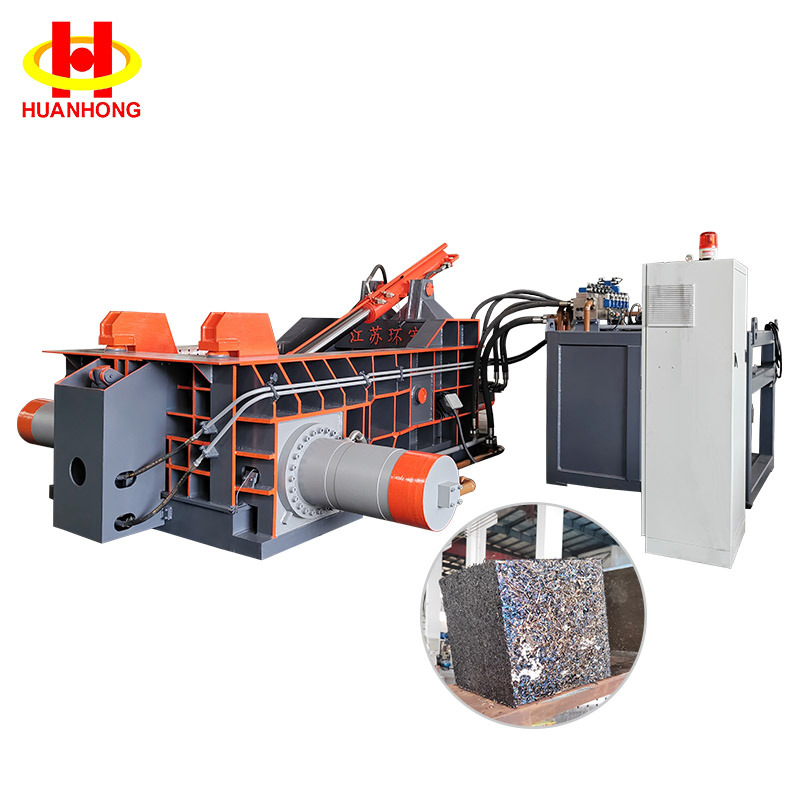

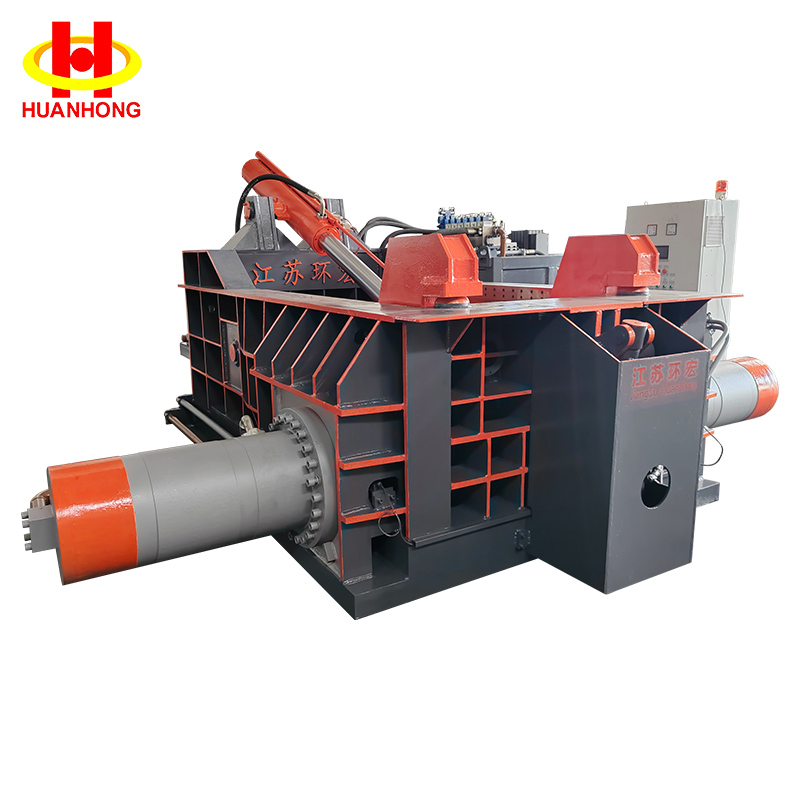

The Y81F-250 hydraulic scrap metal baler is a high-performance product in the Y81 series of horizontal hydraulic metal balers. As a medium-capacity scrap compaction system, this hydraulic metal baler provides a rated pressure of up to 2500 kN, enabling it to efficiently and reliably compact ferrous and non-ferrous metals. Designed for various small-scale metal recycling plants, the Y81F-250 can compress bulk scrap iron, steel scraps, copper pipes, and aluminum profiles into structurally stable bales. Whether integrated into the scrap handling process of a steel plant or operated as a stand-alone unit in a metal recycling facility, this scrap metal baler meets the needs of modern industrial metal management.
Technical specification of Y81F-250 metal baler | |
Model | Y81F-250 |
Nominal pressure(kn) | 2500 |
Bin size(L*W*H)(mm) | 2000*1750*800 |
Bale size(W*H)(mm) | 500*500 |
Power(kw) | 55 |
All technical parameters are for reference only. Final specifications are subject to technical consultation and production agreement.
1.High-Pressure Hydraulic Compression: The Y81F-250 scrap baler generates a rated pressure of 2500 kN, ensuring complete compaction of rigid metal scrap.
2.Large-Capacity Hopper: The hopper measures 2000mm (L) × 1750mm (W) × 800mm (H), accommodating large, irregularly shaped scrap and substantial amounts of chips, thus reducing feeding frequency and downtime.
3. Standardized Bale Output: Produces uniform balers with a size of **500mm × 500mm**, facilitating efficient stacking, transportation, and furnace loading. Consistent baler geometry reduces logistics costs and improves smelting efficiency.
Lightweight, loose materials: such as metal shavings, wood chips, and thin sheet metal, become significantly denser after baling, facilitating transportation and storage.
Small to medium-sized scraps: suitable for routine waste generated by metal processing plants and machining workshops.
Non-ferrous metal scraps: high-value scraps such as copper and aluminum, which are reduced in oxidation and loss after baling.
We understand that standard specifications rarely cover all operational variables. Our engineering team offers comprehensive customization options for the Y81F-250 scrap metal baler platform:
1. Pressure Configuration Adjustment
The Y81F-250 operates at 2,500 kN, while the Y81 series ranges from 63 tons to 2,000 tons (approximately 620 kN to 20,000 kN). We can configure additional tonnage levels based on your material hardness and density targets.
2. Hopper Size Adjustment
Adjust the length, width, or depth of the hopper to match your commonly used scrap sizes or existing material handling equipment. Customized hopper sizes optimize loading factors and reduce pre-treatment requirements.
3. Packing Size Adjustment: The standard packing cross-section size of the Y81F-250 packing machine is 500×500mm. It can be adjusted to 400×400mm or 600×600mm to match your furnace size, container loading mode, or customer-specific density specifications.
