Fully Automatic Aluminum Scrap Hydraulic Metal Recycling Baler
Share to:

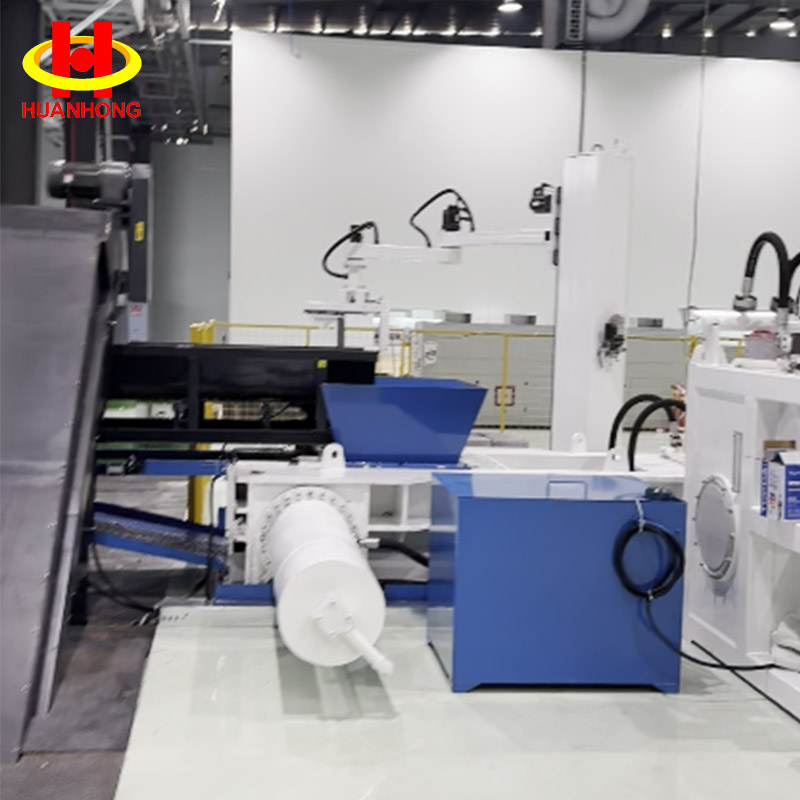

This is a 250-ton side-push hydraulic metal baler, which is also equipped with a feeding conveyor belt and a robotic arm, forming a complete fully automatic hydraulic metal baler production line.

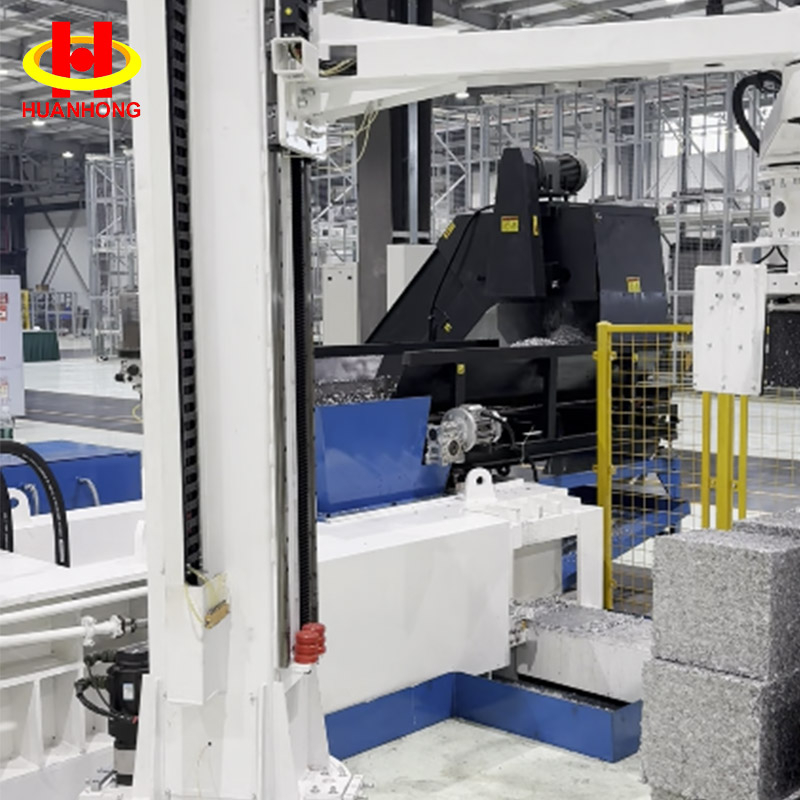

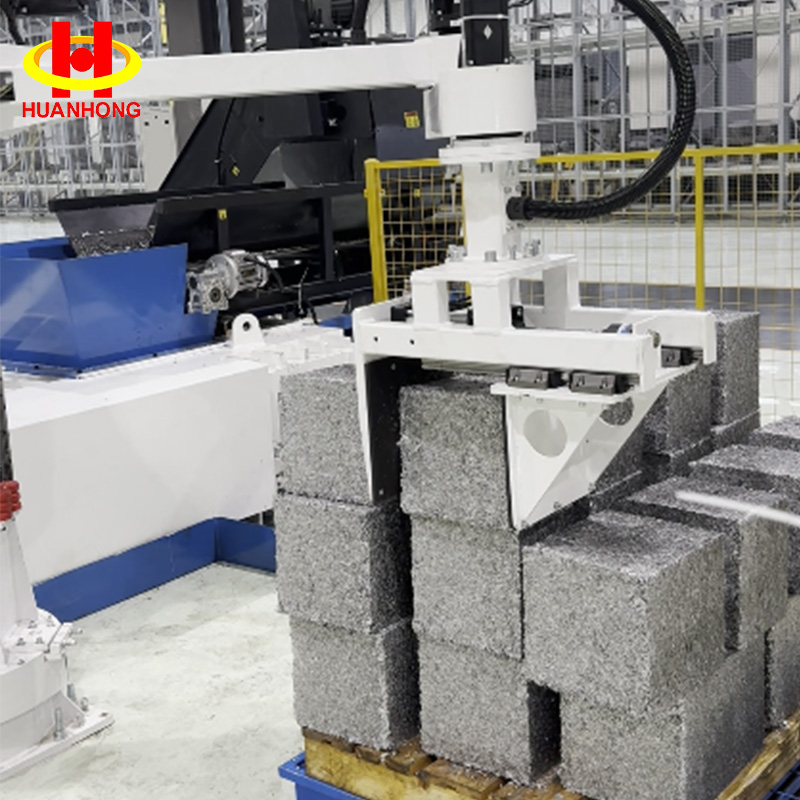

This is a 250-ton, side-eject hydraulic metal baler, custom-designed to meet specific client requirements for processing aluminum scrap. It utilizes external force to compress loose aluminum shavings into uniformly shaped rectangular blocks. The baler is equipped with an integrated infeed conveyor belt featuring a weighing mechanism; furthermore, its lidless design effectively enhances operational efficiency during continuous baling cycles. Our engineers have also incorporated an automated palletizing system into this hydraulic baler: once a finished aluminum bale is ejected from the machine's compaction chamber, a robotic arm retrieves the metal block and stacks it onto an adjacent pallet. This design optimizes the handling of the metal bales, thereby facilitating their subsequent storage and transportation.
Technical specification of the metal baler
Model
Y81T-250
Nominal pressure(kn)
2500
Bin size(L*W*H)(mm)
1000*750*450
Bale size(W*H)(mm)
250*250
Power(kw)
22
The above parameters are for reference only. The balers can be customized.
Application of the metal baler
This hydraulic metal baler can not only compress aluminum scrap, but also process other types of scrap metal, such as scrap steel, scrap copper, and scrap iron, in different forms (shavings/chips, thin materials, offcuts, heavy materials, bulk/mixed materials, etc.).
Customized services
All our machines can be customized. For example, the size of the hopper, the size of the bales, and the discharge method of this hydraulic gold baler can all be customized according to customer requirements. The feeding conveyor, the discharging conveyor belt, and the robotic arm can also be configured according to needs.
