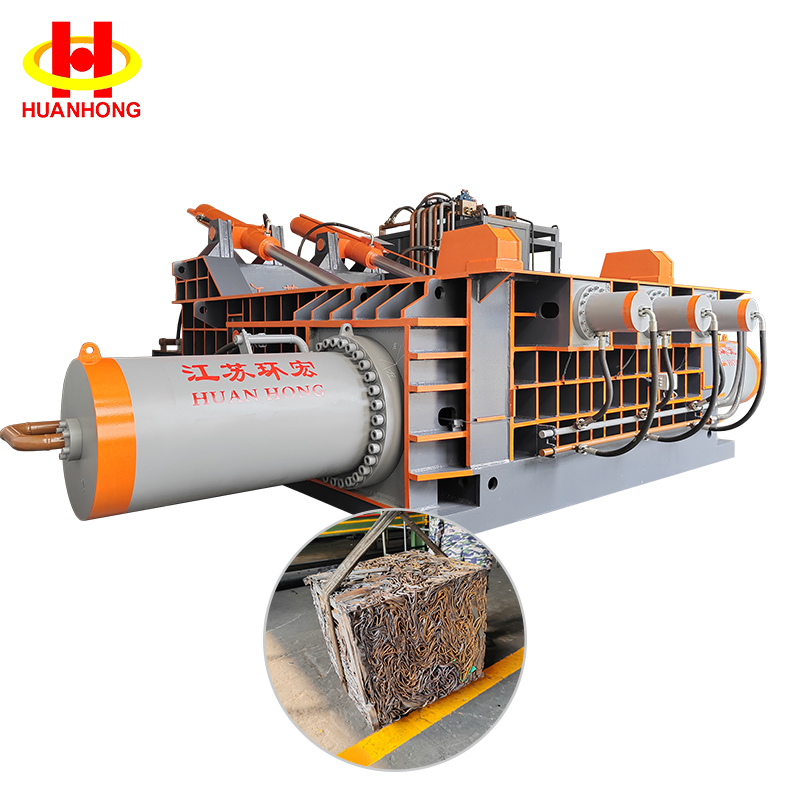

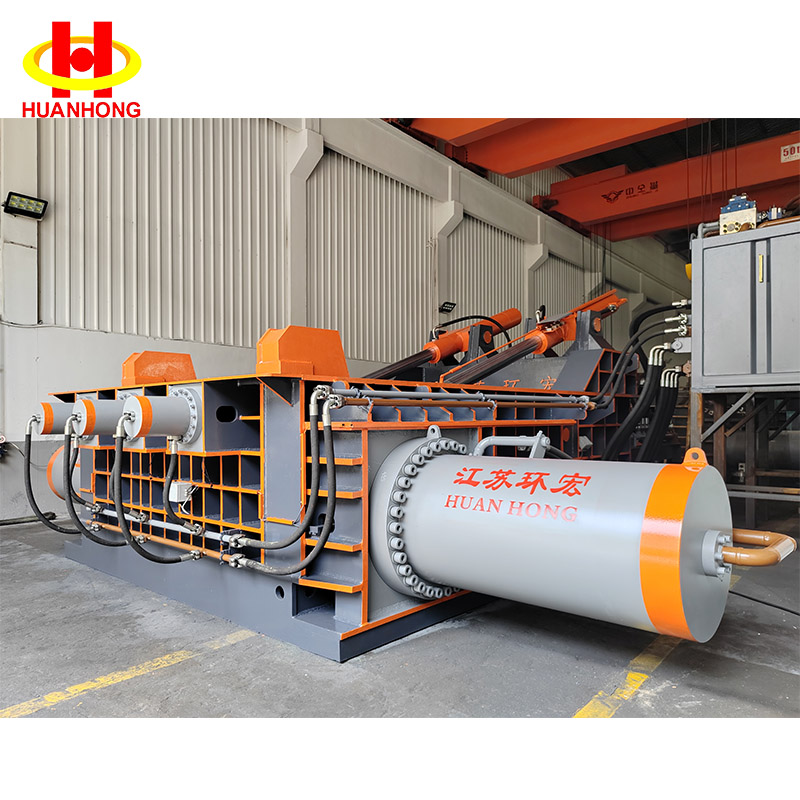

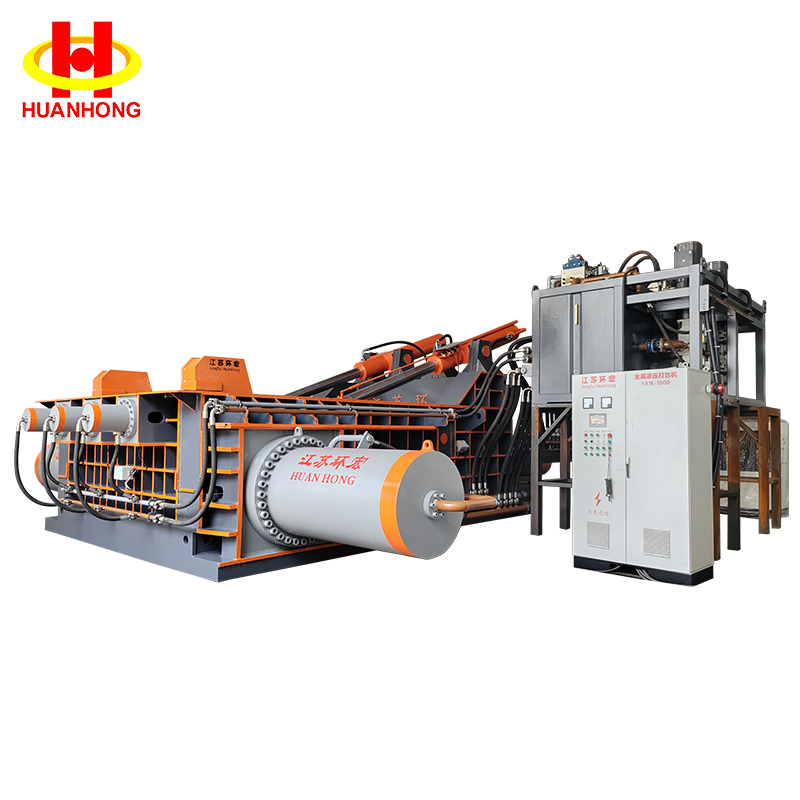

The Y81K-1000 industrial-grade hydraulic metal baler represents the state of the art in metal scrap compaction technology. Powered by a high-efficiency 188 kW motor driving a 22 MPa high-pressure hydraulic system, the baler generates a rated operating force of 1,000 tons to compress various types of loose metal scrap into standardized 700×700 mm bales. Its charging box—measuring 3,500×3,000×1,400 mm—is designed to meet the demands of continuous industrial production, supporting both direct forklift loading and automatic conveyor-fed loading, thereby significantly enhancing the overall efficiency of the scrap processing line.
Technical specification of Y81K-1000 metal baler | |
Model | Y81K-1000 |
Nominal pressure(KN) | 10000 |
Press box size(mm) | 3500*3000*1400 |
Bale section size(mm) | 700*700 |
Power(KW) | 188 |
The above parameters are for reference only. The balers can be customized.
1. All balers feature hydraulic drive systems, delivering high pressure and stable operation.
2. The inner walls of the feed hopper are lined with high-quality wear-resistant plates, ensuring a long service life.
3. The standardized 700×700mm bale size is compatible with the intake dimensions of most smelting furnaces.
4. Diesel generators can be configured for use in locations without a mains power supply.
As the flagship model of industrial hydraulic metal balers, the Y81K-1000 is suitable for centralized forming of scrap copper and aluminum in non-ferrous metal smelters, compression of large ship plates in ship dismantling bases, processing of scrap wheelsets and rails by rail transit equipment manufacturers, and baling of mixed metal waste in urban mineral resource utilization centers. The equipment has good compression adaptability for stainless steel, alloy steel, and copper-aluminum mixtures.
The size of the hopper and the size of the bale can be customized according to customer requirements; the hydraulic oil cooling system can be equipped with either air cooling or water cooling; for high humidity operating environments, the whole machine can be upgraded with an anti-rust coating; at the same time, it is also possible to customize the appearance coating and nameplate marking according to the customer's brand requirements.
