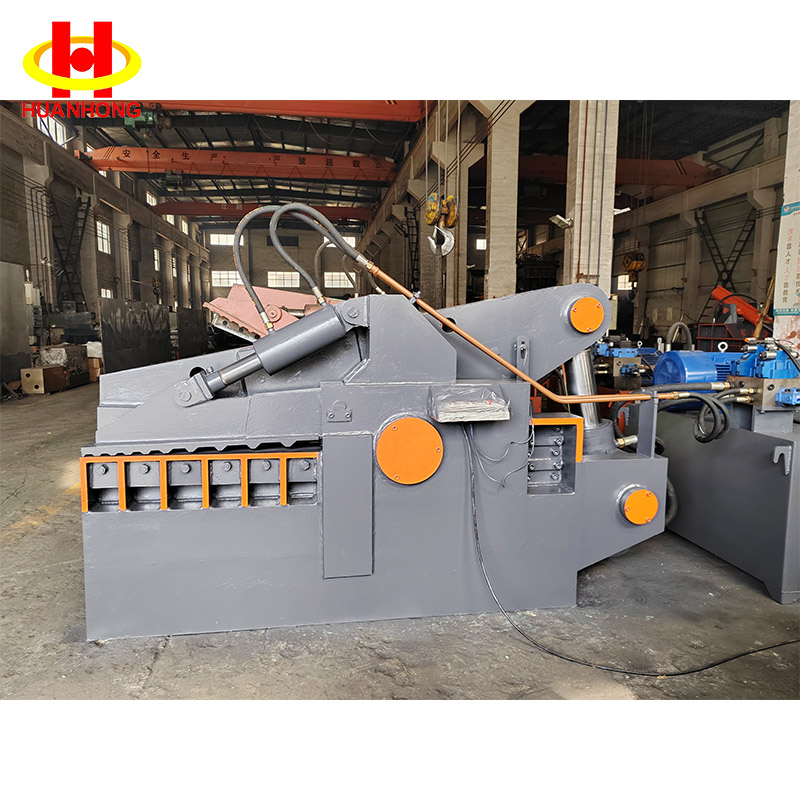

The Q43-200 portable hydraulic alligator shear is a high-performance hydraulic device specifically designed for the modern metal recycling industry. This alligator shear utilizes a hydraulic drive system with a rated pressure of 2000kN and is equipped with 1000mm extended blades, effectively handling heavy metal materials such as 60mm diameter round steel and 50×50mm square steel. Ideal for small and medium-sized recycling businesses, the Q43-200 achieves a perfect balance between a compact design and powerful shearing capacity, helping operators significantly improve waste processing efficiency and reduce operating costs.
Model | Q43-200 |
Nominal pressure (KN) | 2000 |
Blade length (mm) | 1000 |
Shear height (mm) | 60-300 |
Cutting range (mm) | Round steel φ60, square steel 50x50 |
Cutting times (times/min) | 4-6 |
Operation method | Manual operation |
Power Specifications | 380V/3P 50Hz |
Total equipment power (KW) | 22 |
Hydraulic system working pressure (MPa) | ≤25 |
The above parameters are for reference only. The shears can be customized.
1. Industrial-grade hydraulic power system: Equipped with a 22KW high-efficiency motor, the hydraulic system maintains a stable working pressure within ≤25MPa, ensuring consistent power output during continuous operation.
2. Shearing control: A shearing frequency of 4-6 times per minute, combined with a manual operation mode, allows for immediate pause.
3. Multi-material compatibility: The blades are made of a special alloy material, capable of processing various non-ferrous and ferrous metals, including scrap steel plates, aluminum profiles, and copper pipes.
4. Mobile and portable design: The compact structure facilitates rapid deployment across different work sites, meeting the needs of mobile applications such as scrap yards and demolition sites.
5. Safety protection mechanisms: Multiple hydraulic protection devices and an emergency stop system ensure the safety of personnel and equipment under high-load operating conditions.
1. Metal recycling plants: Pre-processing and standardizing the size of large quantities of scrap, improving subsequent smelting efficiency by 15-20%.
2. Scrap metal distribution centers: Quickly shearing and classifying various types of scrap metal on-site, reducing transportation volume and lowering logistics costs.
3. Steel manufacturing enterprises: Instantly recycling and processing production line scraps, achieving zero-inventory management of waste materials.
4. Building demolition projects: On-site shearing of scrap steel bars and metal structural components, simplifying the removal process and accelerating project progress.
We provide comprehensive equipment customization solutions to suit different business sizes and specific needs:
1. Specification Customization: Adjusting blade length (800-1200mm selectable), shearing height range (60-300mm adjustable), and opening size according to the characteristics of the materials being processed.
2. Power System Upgrade: Offering 30KW/37KW high-power configuration options suitable for high-intensity continuous operation environments.
3. Blade Material Optimization: Providing higher-end mold steel blade options for special materials such as stainless steel and titanium alloys.
4. Electrical System Adaptation: Supporting multiple voltage standards including 220V/440V/480V and a 60Hz frequency to meet the power grid requirements of different regions worldwide.
