Multi-blade Scrap Metal Plate Shearing Machine

Hydraulic multi-blade shears can cut into multiple sections with one blade, which is highly efficient and energy-saving, and is the first choice for metal processing and recycling.

Model:
QL91K-1000
Brand:
Huanhong

Availability:

Quantity:



Inquire Add to Basket

Multi-knife Scrap Metal Shear Gantry Shear with Multiple Blades Scrap Metal Multi-knife Guillotine Shear

Product Description

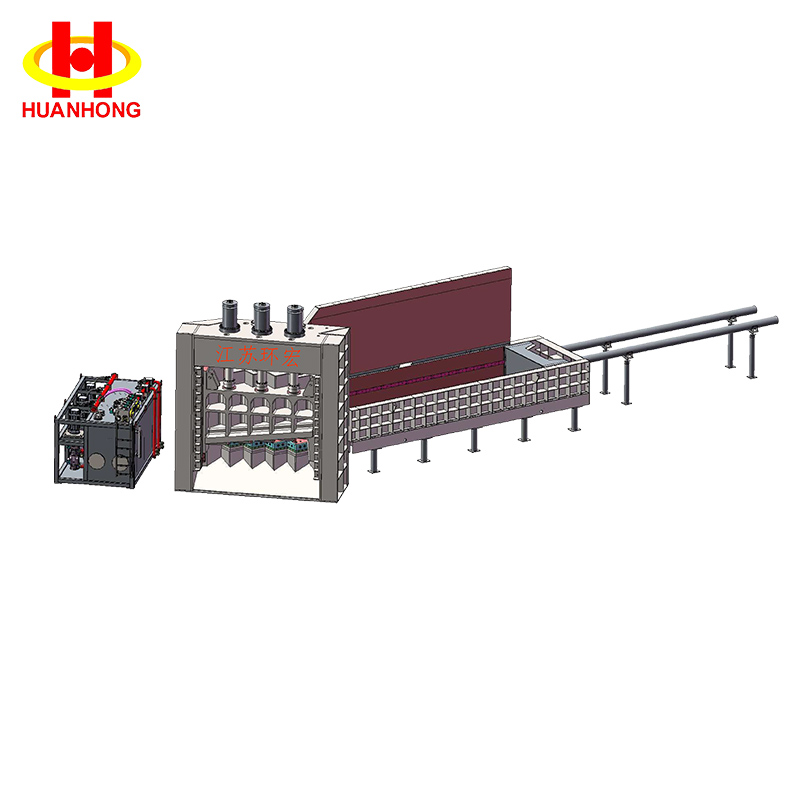

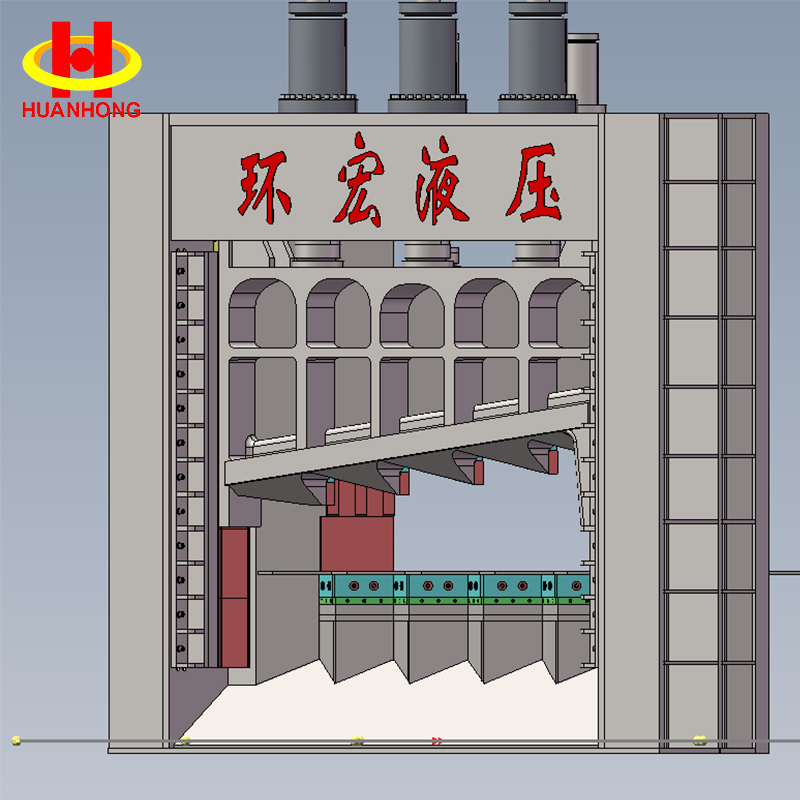

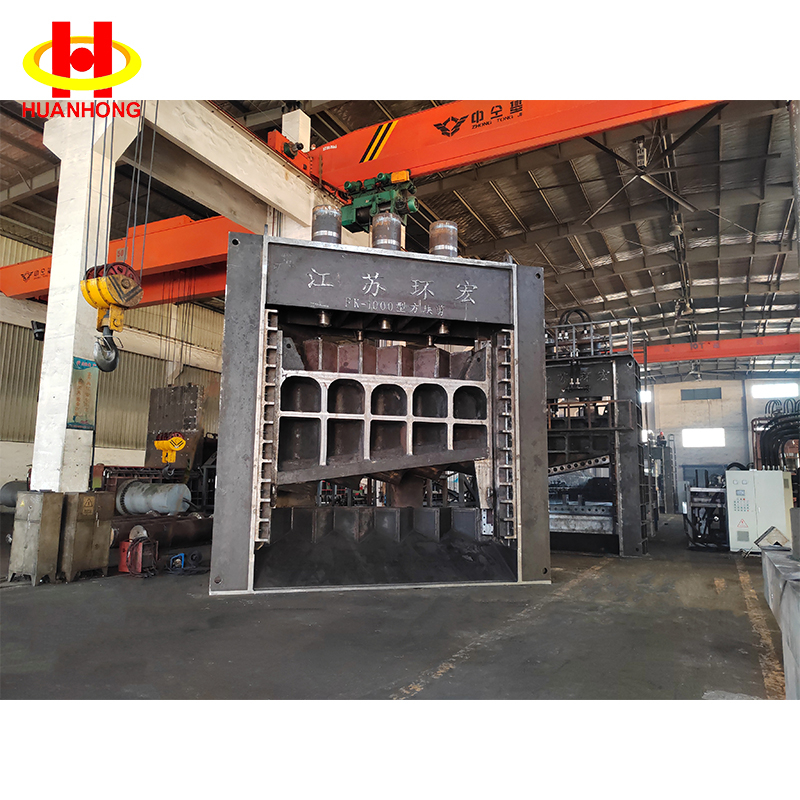

Preoduction of the Multi-Blade Gantry Shear

The Hydraulic Multi-Blade Gantry Shear is a highly efficient and energy-efficient metal shearing device. Driven by hydraulic pressure and equipped with multiple blades, it achieves multiple shearing steps with one blade, achieving single-cut forming, significantly improving processing efficiency. Its high degree of automation, ease of operation, safety, and reliability make it widely used in metal processing, recycling, and smelting industries. It is ideal for processing a wide range of metal materials, particularly shipbuilding sheet metal, formwork, and decorative sheet metal.

Technical Parameters

Technical specification of QL91K-1000 gantry shear
Model	QL91K-1000
Nominal pressure	10000 KN
Blade length	5*500 mm
Material Bin length	8000 mm
Cutting times	2~3 times/min
Power Specifications	380V/3P 50 Hz
Total equipment power	94KW *2
