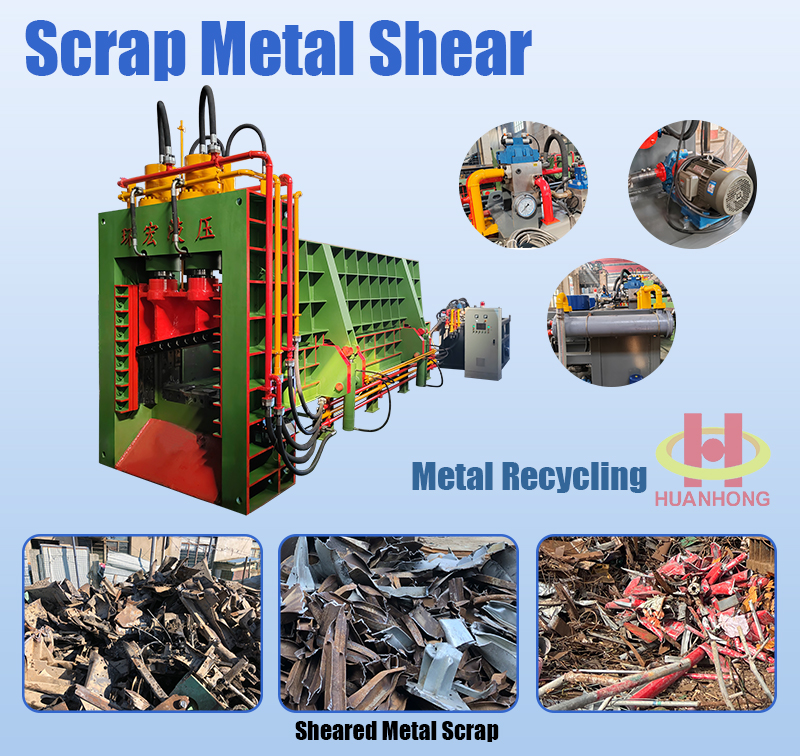

The Q91 series hydraulic gantry shear is a metal recycling equipment specially designed for scrap metal recycling, processing and reprocessing industries. This 400-ton heavy-duty hydraulic gantry shear equipment, with its powerful cutting capacity, can easily cope with the cutting needs of various metal pipes, steel bars and metal plates. This 400-ton metal hydraulic gantry shear belongs to the small and medium-sized heavy scrap metal shears, suitable for small and medium-sized scrap metal recycling stations, metal smelters, steel mills, etc.
Technical specification of Q91-400 gantry shear | |
Model | Q91-400 |
Nominal pressure | 4000 kn |
Blade length | 1400mm |
Material Bin length | 6000mm |
Cutting times | 3~5 times/min |
Power Specifications | 380V/3P 50Hz |
Total equipment power | 37*2KW |
Hydraulic system working pressure | ≤25MPa |
The above parameters are for reference only. The shears can be customized.
1. High shear force: 4000KN shear pressure ensures unparalleled cutting force.
2. High-quality blade: 1400mm blade length ensures cutting accuracy and efficiency.
3. High-efficiency power supply configuration: 380V/3P 50Hz power supply specification, combined with 37×2KW total equipment power, ensures stable operation of the equipment.
Q91-400 hydraulic gantry shear is widely used in metal recycling plants, steel enterprises, automobile dismantling centers, etc. It is especially suitable for processing large-scale scrap metals, improving recycling efficiency and reducing operating costs.
Q1: What thickness of metal can it cut?
A: The 400-ton model handles steel plates up to 20mm thick and section bars (I-beams, channels) within 400×400mm, suitable for heavy scrap from construction and vehicle recycling.
Q2: What power supply options are available?
A: We customize motors for 380V/50Hz, 460V/60Hz, or local standards. Hydraulic system runs at 25MPa with energy-efficient variable pumps.
Q3: How is shipping and installation handled?
A: Machine ships in 3-4 CKD containers for easy transport. We provide English manuals, video guidance, and can dispatch engineers for on-site assembly and training.
