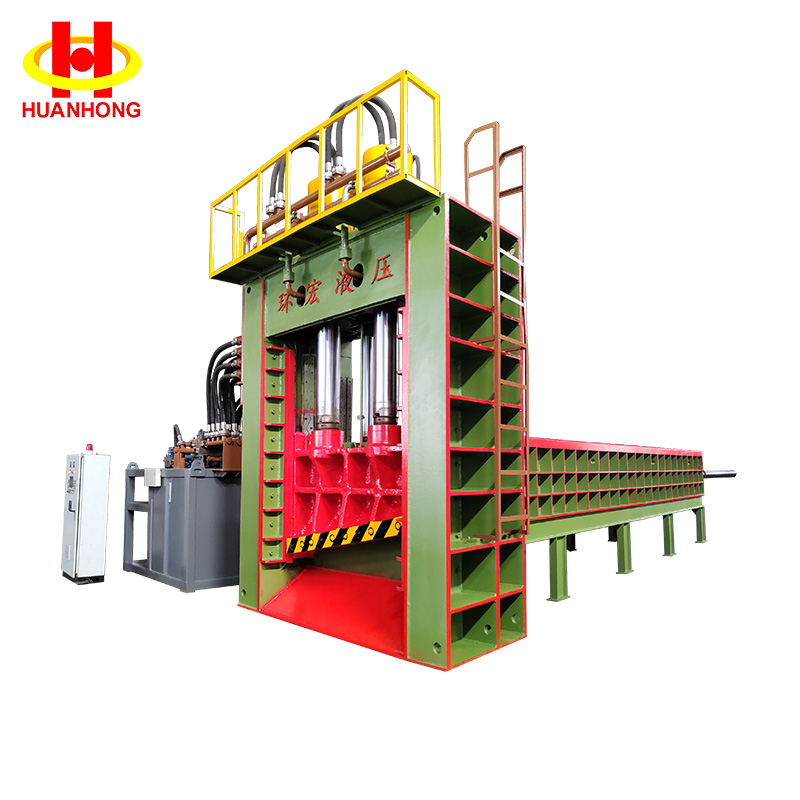

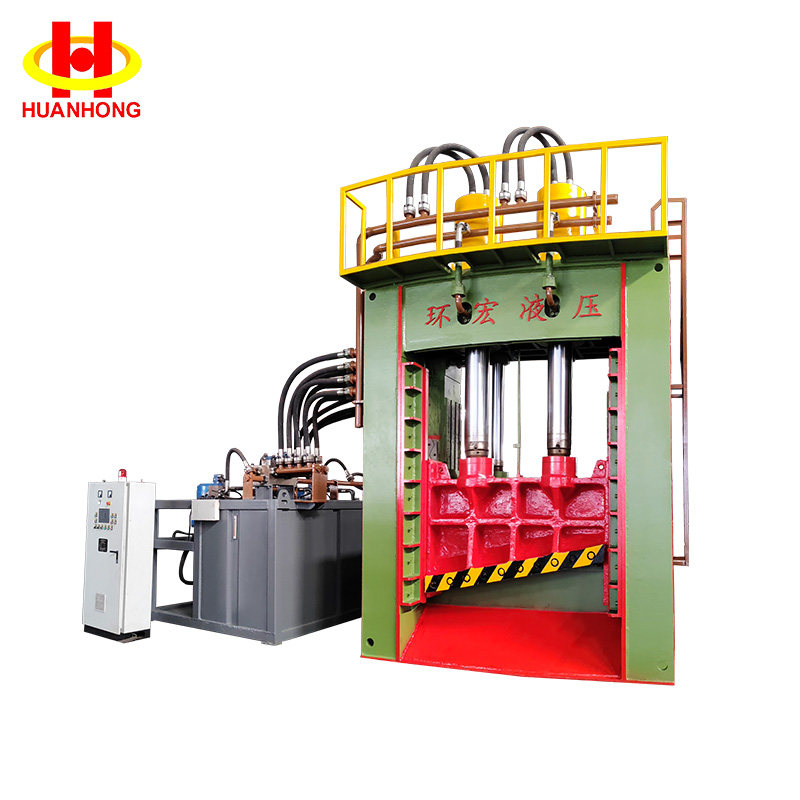

This is a Q91 series 630-ton hydraulic metal gantry shear. Q91 series hydraulic gantry shears are metal recycling equipment used to cut or shear metal scraps into small pieces. This series of scrap metal shears is commonly used in metal recycling facilities, metal fabrication plants, scrap yards, scrap car dismantling plants, etc. The Q91 series gantry hydraulic shearing machine can cut various scrap metal materials, including I-beams, light and thin steel materials, steel bars, nickel plates, round steel, steel pipes, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, Metal briquettes, automobile bodies, etc. This Q91 Series Gantry Shears are ideal equipment for the scrap metal recycling industry as they help reduce the amount of metal scrap making it easier to handle and transport.
Technical specification of Q91-630 gantry shear | |
Model | Q91-630 |
Nominal pressure | 6300 KN |
Blade length | 1800 mm |
Material Bin length | 7000 mm |
Cutting times | 3~5 times/min |
Power Specifications | 380V/3P 50 Hz |
Total equipment power | 135 KW |
Hydraulic system working pressure | 22 MPa |
The above parameters are for reference only. The balers can be customized.
1. Shearing Thickness: A single cold shearing cycle can cut round steel with a maximum diameter of ≤180 mm, mild steel plate with a thickness of ≤80 mm, or mixed scrap.
2. Blade Width: Mainstream models offer 1800 mm, enabling a large single-cut length and reducing reloading times.
3. Bin Capacity: An extra-long 6-7 m bin can hold 8-10 tons of lightweight material at a time, increasing continuous operation time.
4. Cycle Efficiency: Fully loaded, the machine can cut 3-5 times/minute, achieving an hourly output of 15-20 tons.

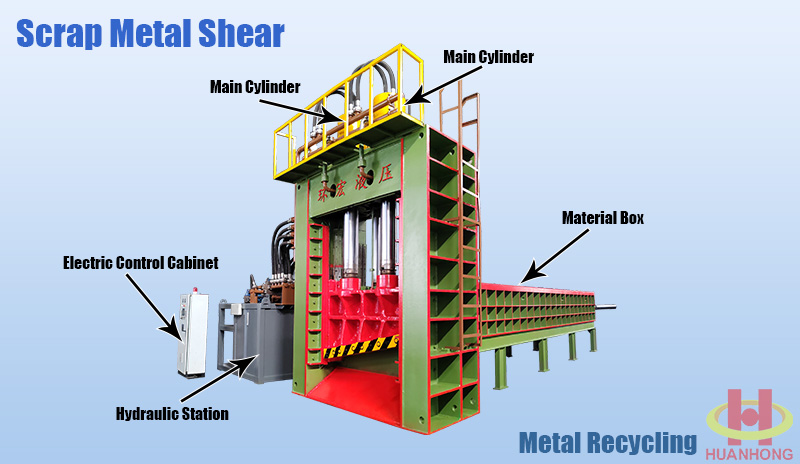

5. System Pressure: 22-25 MPa. Dual master cylinders are synchronously driven, providing powerful power and energy efficiency.
1. Scrap Processing Center: Shears commercial scrap and industrial offcuts into qualified furnace materials ≤300 mm.
2. End-of-Life Vehicle Dismantling: Shears car beams, truck frames, and bus chassis in a single operation.
3. Building Steel Structures: Cut H-beams, I-beams, and steel pipes to length for easy transportation and recycling.
4. Shipbreaking/Tower Dismantling: Cooperate with shipbreaking yards to cut hull steel plates and wind turbine towers into sections, reducing flame cutting pollution.
5. Nonferrous Metals Pre-sorting: Shear mixed metals to uniform sizes before entering the sorting line, improving sorting accuracy.
