Introduction of the vertical baler

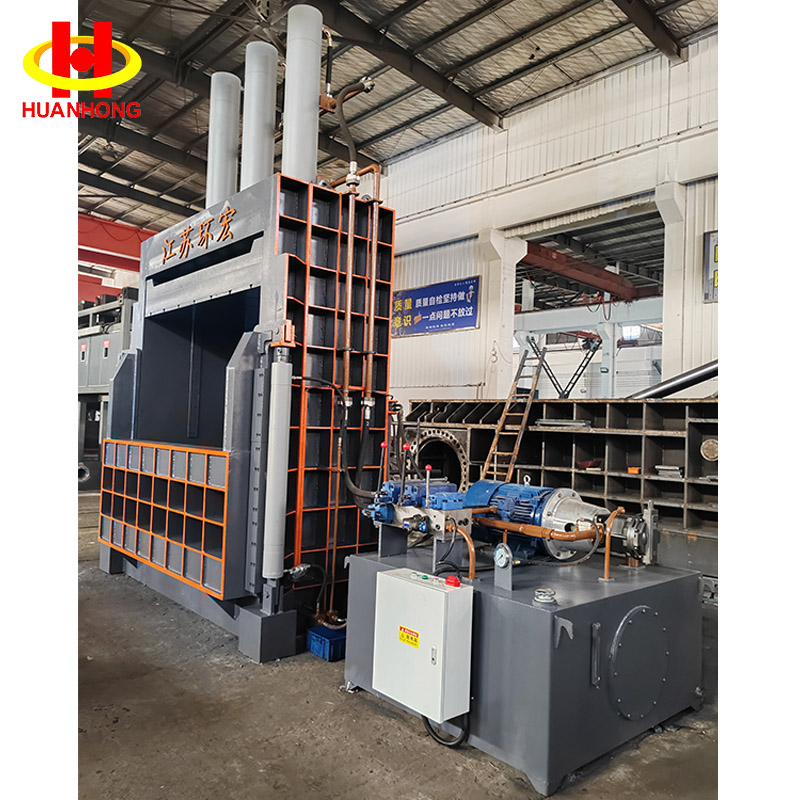

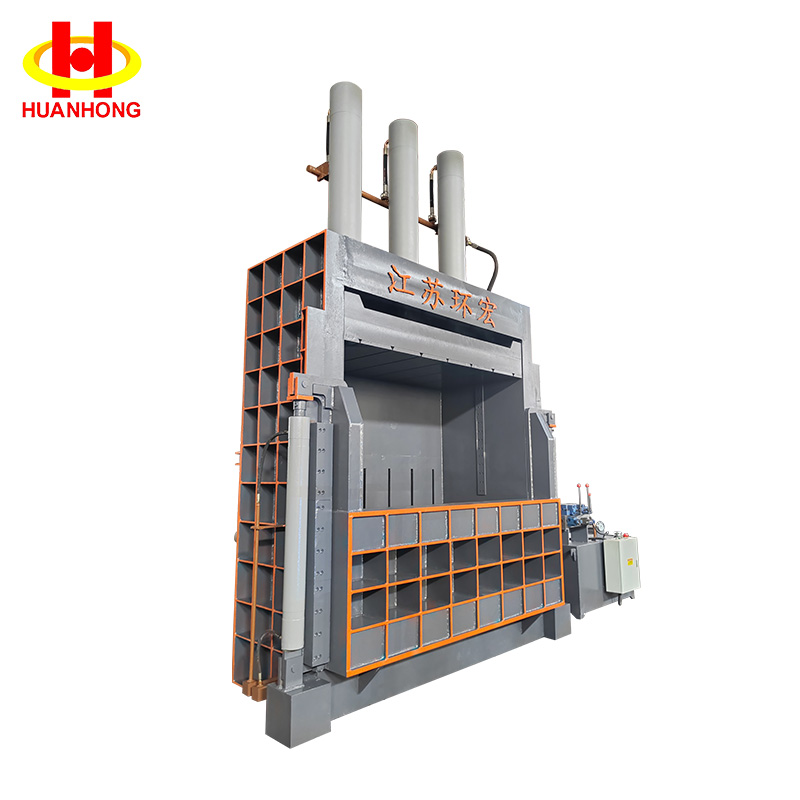

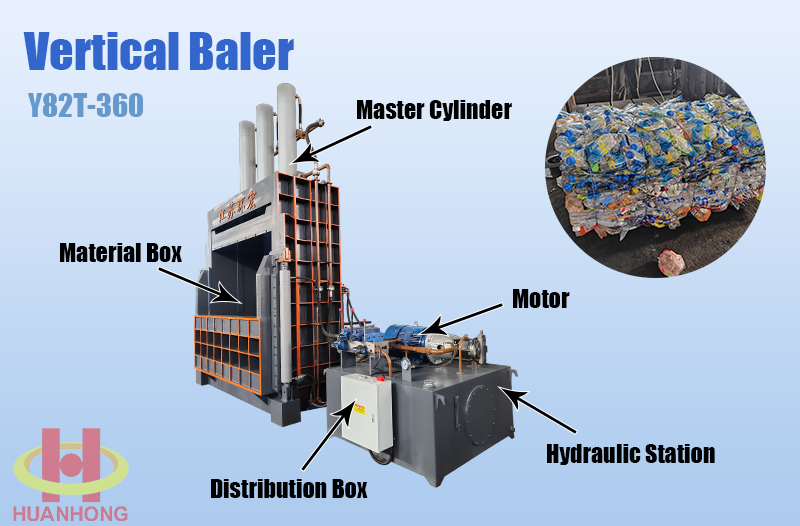

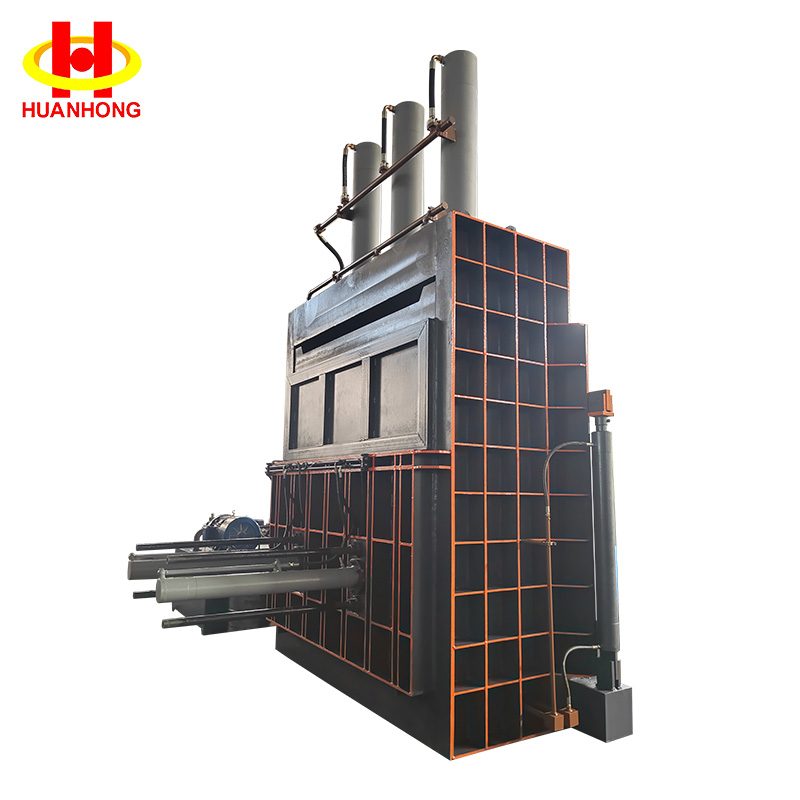

The Y82T-360 vertical hydraulic baler is a medium-sized waste compression unit designed specifically for recycling facilities that handle a wide range of recyclable materials. Featuring a rated pressing force of 3,600 kN and a spacious compression chamber measuring 2,400 × 1,150 mm, the machine compacts loose materials—such as cardboard, office paper, PET bottles, plastic film, textiles, and light metal scrap—into dense, neatly bound bales, thereby significantly saving storage space and reducing transportation costs.
Unlike horizontal balers dedicated to single material types, the Y82T-360 is a truly multi-material baler. A single unit can process diverse materials, including waste paper (corrugated boxes, cartons, office paper), rigid plastics and plastic films (PET bottles, PE film), textiles (cotton, wool, yarn, woven bags), and light metals (stainless steel offcuts, aluminum profiles). Once compressed, the bales can be secured with wire or strapping, ensuring stability during long-term storage and transport.
Technical specification
Technical specification of Y82T-360 vertical l baler | |
Model | Y82T-360 |
Nominal pressure(kn) | 3600 |
Press box size(mm) | 2400*1150 |
Power(kw) | 37 |
Hydraulic system working pressure(Mpa) | 22 |
The above parameters are for reference only. The balers can be customized.
Features of the vertical baler
1. High Compaction Ratio: A 3600 kN hydraulic cylinder compresses material to its minimum volume, producing bales that are larger and denser than those from comparable horizontal models;
2. Space-Saving Vertical Design: The vertical structure occupies a small footprint, making it ideal for small-to-medium-sized recycling facilities;
3. Ease of Operation: Supports manual or semi-automatic control modes; operators require only basic training to use the equipment safely;
4. Reliable Hydraulic System: Powered by a 37 kW motor delivering 22 MPa of working pressure, ensuring stable, continuous operation with a low failure rate;
5. Cost-Effective: Offers lower purchase and installation costs compared to horizontal systems, providing excellent value for money.
Applications of the vertical baler
The Y82T-360 is widely used in scrap collection centers, resource recycling enterprises, large retailers, and logistics centers. Typical materials processed include:
1. Paper: Waste paper, cartons, cardboard boxes, and office paper;
2. Plastics: PET bottles, plastic film, and HDPE containers;
3. Metals: Light scrap iron, steel, copper, and aluminum;
4. Fibers: Cotton, wool, flax fiber, yarn, and woven bags.
Customization Service
Standard specifications are for reference only. As a professional manufacturer of hydraulic balers, Jiangsu Huanhong can customize the baling chamber dimensions, bale sizes, motor power, and control systems based on your material type and daily processing volume. We also assist you in selecting the right equipment from our comprehensive product range—including Y81 series metal balers, Y82 series vertical balers, HBM metal balers, EPM waste paper balers, and metal chip briquetting machines—to meet your specific scrap processing requirements.
